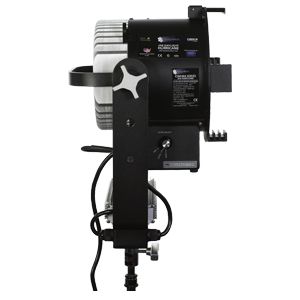

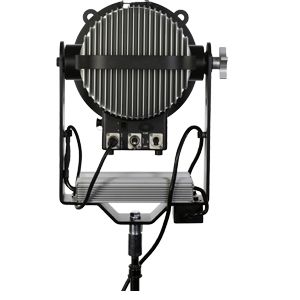

JAB Hurricane Cinema image

The AAdynTech JAB Hurricane Cinema is the most powerful compact all-weather IP65 rated LED fixture available on the  market today. Now the JAB Hurricane Cinema is coupled with high CRI(92+) performance to create the JAB Hurricane Cinema fixture. It delivers an impressive 1,508 fc @ 10 feet while consuming only 1.77 amps at full power and can also be operated via 48 volt DC battery power making it ideal for any remote production where power is limited. The IP65 rating totally protects the Hurricane from dust and water from any direction. The JAB Hurricane Cinema boasts fan-less convection cooling and flicker-free operation up to 12,000 frames per second. High optical efficiency provides a single light-source, eliminating multiple shadows, and quick change lenses vary the beam angle between spot, medium and flood while maintaining a flat, even illumination field. Passive convection cooling provides silent operation and instant ON at all times ensures no warm-up wait time on set.

The IP65 Hurricane Cinema has a Daylight CCT of 5600K, and compliments the AAdynTech JAB Cinema Series which is available in four other models; standard Daylight, Tungsten, Variable and Daylight High Speed (100,000 fps) to fit your creative needs without sacrificing output or color-temperature. The Hurricane Cinema as well as the entire Jab Series can be controlled manually via local on-board controls, DMX or AAdynTech’s optional wired UIM Digital Remote. The UIM for the Hurricane Cinema is also rated at IP65 for outdoor use. The JAB Hurricane Cinema is offered standalone or as several complete Kits all of which include a weather-proof molded ATA Mil-Spec road case with wheels/handle and various accessory components. A host of options for the Hurricane Cinema are available including; barn doors, speed ring, light bank, filters and more. For those tough field assignments in driving rain, a winter blizzard or where available power is questionable, the JAB Hurricane Cinema is the only professional choice.

+ Features

  • 92+ CRI Across entire brightness range
  • Weatherproof – IP65 rated
  • 5600K CCT
  • 1,508 foot-candles @ 10ft.
  • No UV or IR emissions on talent
  • Draws only 1.77 amps at full output
  • Auto range voltage – 90/240 VAC – 50/60Hz
  • Same size and uses the same accessories as JAB Hurricane
  • Run on 48v DC power for hours w/ battery source
  • Up to 90% energy savings
  • Precise brightness control w/ variable dimming curve
  • No color shift with flat even field
  • Single light source eliminates multiple shadows
  • Flicker-free up to 12,000 fps
  • No heat generation – operates cool to the touch
  • Convection cooled – no fans – runs silent
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Local onboard control and DMX w/ DMX loop-thru
  • 5-pin XLR DMX In/Out
  • Optional UIM Digital Remote (IP65 weatherproof)
  • Programmable multiple lightning and strobe effects (witih UIM)
  • Multiple user memory storage with recall (with UIM)
  • 2-year warranty on the fixture
  • Operating temperature at -20c to +50c
  • Certified UL, ETL, CSA, CE & RoHS compliant

The JAB Series is available in three models: Daylight, Variable & Hurricane. Special order models include: Tungsten & Bullet high

+ Specifications

Control: Local, UIM, DMX
Source: LED, 5600K CCT, 92+ CRI
Cooling: Passive
Mounting: Baby Pin or Junior
Certifications: ETL, UL, CSA, CE and RoHS Compliant

+ Dimensions

Length: 339.0 mm 13.3 in
Width: 326.5 mm 12.9 in
Height: 554.9 mm 21.8 in
Weight: 8.9 kg 19.5 lbs

+ Power

Input Voltage: 100-277v AC Battery (48v DC)
Input Freq: 50/60 Hz
Input Current: 1.77 Amp @ 120V 212 Watts @ full
Connection: US NEMA 5-15

+ Highlights

  • RoHS Compliant
  • 1,500 foot candles @ 10 feet
  • Daylight-Balanced at 5600K CCT
  • Dimmable with no color shift
  • Draws 1.77 amps at max output
  • No Harmful UV or IR Radiation
