JAB Variable image

The JAB V2 Variable has an adjustable color temperature range of 3,000°K to 6,000°K and develops an output of 2,100 fc @ 10 feet. Most remarkable is the Variable draws only 1.78 amp of power at full output, and can be operated at 30v DC battery power in situations where conventional A/C supply is problematic or non-existent. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

Optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loop-thru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided and a full set of accessory options are available; barn doors, ATA Mil-spec road cases, speed rings, light banks, filters and more. Several Kit versions coupled with various accessories and housed in a rugged Mil-Spec waterproof molded rolling case. When your production requires precise color temperature control and reliable even lighting; the JAB V2 Variable by AAdynTech has no peer.

+ Features

  • 2,100 foot candle output @ 10 feet
  • Adjustable 3000°K to 6000°K color temperature
  • Accurate color temperature readout on UIM
  • Draws only 1.78 amp at full output
  • Auto range voltage – 100/277 VAC – 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
  • No heat generation – operates cool to the touch
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps

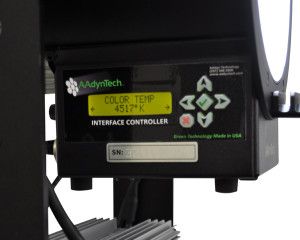

  • Optional corded digital User Interface Module (UIM) control
  • Recalibration countdown hour ‘smart’ meter
  • Full DMX control w/ DMX loop-thru
  • 5-pin XLR DMX In/Out
  • Programmable multiple lightning and strobe effects
  • Multiple user memory storage with recall
  • 2 year warranty on fixture
  • Operating temperature at -20c to +50c
  • Certified UL, ETL, CSA, CE & RoHS compliant

 The JAB Series is available in three models: Daylight, Variable & Hurricane. Special order models include: Tungsten & Bullet high speed versions.

+ Specifications

Control: Local, UIM, DMX
Source: LED, 3,000K to 6,000°K
Cooling: Passive
Mounting: Baby Pin or Junior
Certifications: ETL, UL, CSA, CE and RoHS Compliant

+ Dimensions

Length: 339.0 mm 13.3 in
Width: 326.5 mm 12.9 in
Height: 554.9 mm 21.8 in
Weight: 8.9 kg 19.5 lbs

+ Power

Input Voltage: 100-277v AC      Battery (30v DC)
Input Freq: 50/60 Hz
Input Current: 1.78 Amp @ 120V      212 Watts @ full
Connection: US NEMA 5-15

+ Highlights

  • RoHS Compliant
  • Variable Kelvin - 3000K to 6000K
  • Dimmable with no color shift
  • Draws 1.78 amps at max output
  • No Harmful UV or IR Radiation
