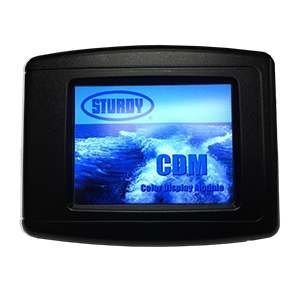

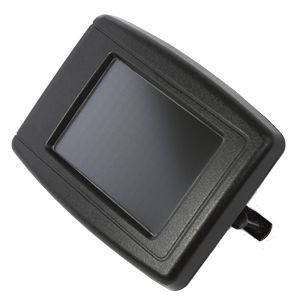

Innovative New Color Display Module with Multiple Features and Options
The new Sturdy Color Display Module is designed to meet the needs of the Marine, Industrial, Outdoor and Embedded markets. Using a Windows CE based operating system, the display offers a versatile platform for many applications. The display meets the toughest requirements for moisture and vibration while still delivering the highest levels of performance.
+ Features
Touch Panel Interface
- No False Triggers from environmental extremes such as Moisture, Rain, Dirt and Temperature
- High Impact, Vandal and Scratch Resistant, Glass on Glass Construction
- Responds to Finger, Glove or Tethered Stylus
- High Optical Quality with up to 95% of light transmission and no wires
- Highly Reliable, Supports Millions of Repeated Touches
Color 6.5” LCD Display
- VGA for sharp and clear images, 640 x 480
- TFT transflective LCD for daylight viewability
- Anti Glare, Shatter resistant coating
LED Backlight
- Rated 50,000+ hours for long life
- Fully adjustable for viewing in all light conditions
- Works well at low and high temperatures
Available I/O
- USB
- Ethernet
- CAN
- Multiple UART interfaces
- Multiple camera interfaces
+ Specifications
| Display 6.5" |
Color TFT LCD |
| Resolution |
VGA, 640x480 |
| Processor |
Freescale, ARM9,iM.X21, 266MHz |
| Flash Memory |
128MB |
| RAM |
256MB |
| CAN |
(2) CAN ports |
| USB |
USB on-the-go |
| Video |
(4) Video Inputs |
| UARTS |
RS232, RS485 available |
| External Alarm |
External Alarm 300m A, Sink |
| Environmental |
Fully Sealed, IP67 |
| Operating Voltage |
9 -32 Vdc |
| Operating Temp. |
-40°C to 70°C |
| Vibration |
Rating 9.8Grms |
As technical advancements continue, all specifications are subject to change without notice.
